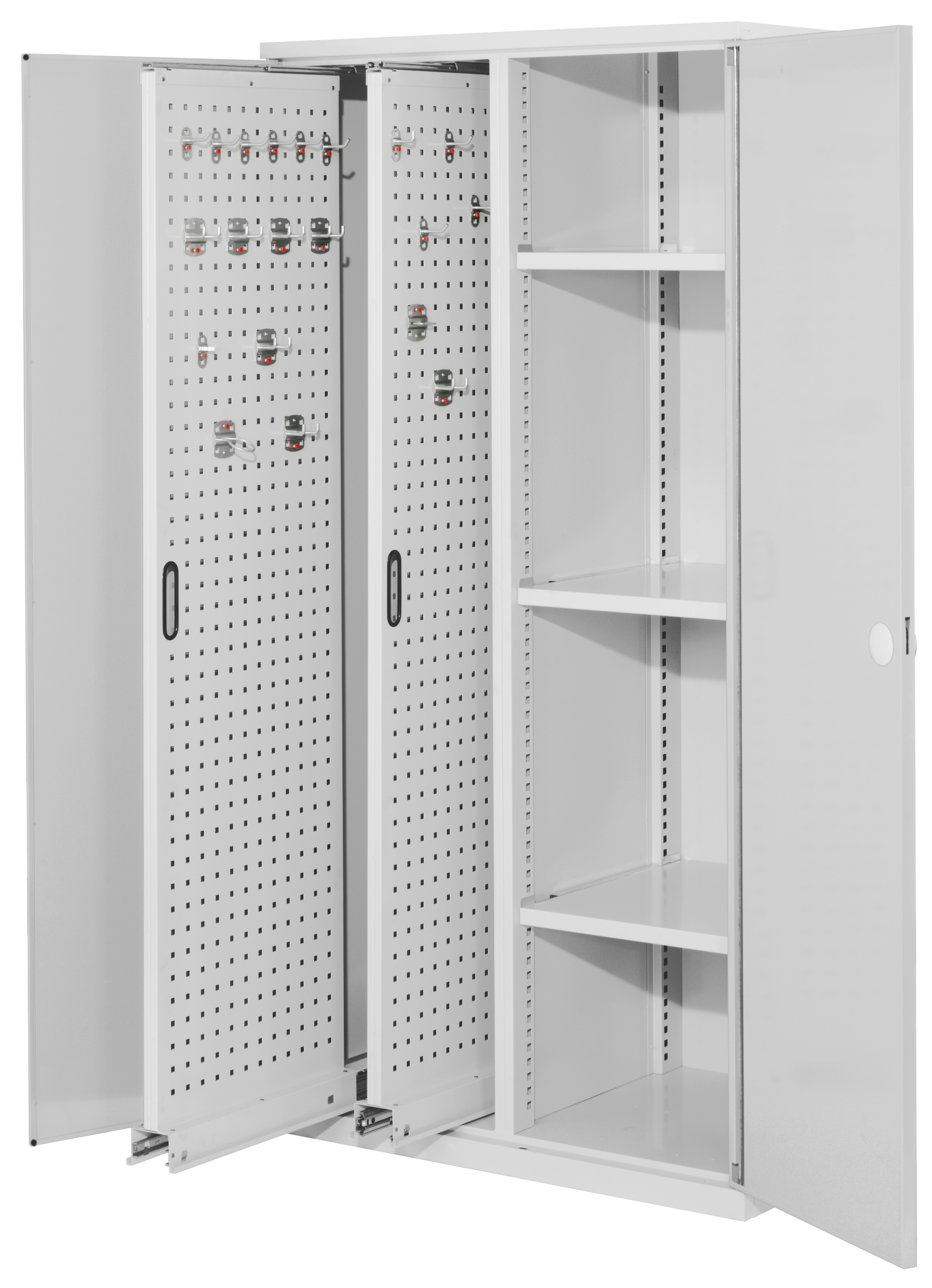

®RasterPlan vertical enclosure model 80 1950 x 1000 x 600 mm RAL 7035. double wall door 2 pull-outs perforated panels 3 shelves.
€2,485.48
Free shipping
Available, delivery time: 1-3 days
Product information "®RasterPlan vertical enclosure model 80 1950 x 1000 x 600 mm RAL 7035. double wall door 2 pull-outs perforated panels 3 shelves."
Product description of the ®RasterPlan vertical cabinet model 80
The ®RasterPlan vertical cabinet model 80, measuring 1950 x 1000 x 600 mm and in RAL 7035, offers an efficient solution for storing and organising tools and key profiles. The sturdy sheet steel construction has an impact and scratch-resistant plastic coating, with the body in light grey.
Technical specifications
- Double-walled door with an opening angle of over 200°
- 2 pull-outs with perforated panels and 3 adjustable shelves
- Telescopic drawers with full-extension runners, can be retrofitted
- Drawer load: 110 kg g.v.
- Vertical pull-outs with telescopic runners, full extension, ®RasterPlan system perforations on both sides
- Pull-out load: 100 kg g.v.L.
- Usable surface: 428 x 1720 mm / 12 x 46 holes
- Useful depth: 90 mm per side
- Galvanised shelves with a load capacity of 80 kg g.v.L.
- Adjustable in 25 mm increments
- Three-bolt security cylinder lock
Advantages for the user
The ®RasterPlan vertical cabinets offer a space-saving solution for storage by ensuring organisation and clarity. All stored items are always within easy reach, which increases efficiency in the working environment. The option of wall or floor anchoring provides additional stability and security. The smooth fronts with front-mounted doors and the continuous rod guidance ensure an attractive appearance and easy handling.
Additional options
Additional group or master keys are available on request to optimise access. The cabinets can be flexibly customised to meet specific requirements, providing a tailor-made solution for industrial applications.
| Breite: | 1000.00 |
|---|---|
| Farbe/RAL Türen Schubladen: | 5010 |
| Farbe in RAL: | 7035 |
| Höhe: | 1950.00 |
| Länge: | 600.00 |
