®RasterPlan vertical enclosure model 84 1950 x 1000 x 600 mm RAL 7035. window door. 2 pull-outs Perforated panels 2 shelves 1 pull-out shelf.
€2,872.33
Free shipping
Available, delivery time: 1-3 days
Product information "®RasterPlan vertical enclosure model 84 1950 x 1000 x 600 mm RAL 7035. window door. 2 pull-outs Perforated panels 2 shelves 1 pull-out shelf."

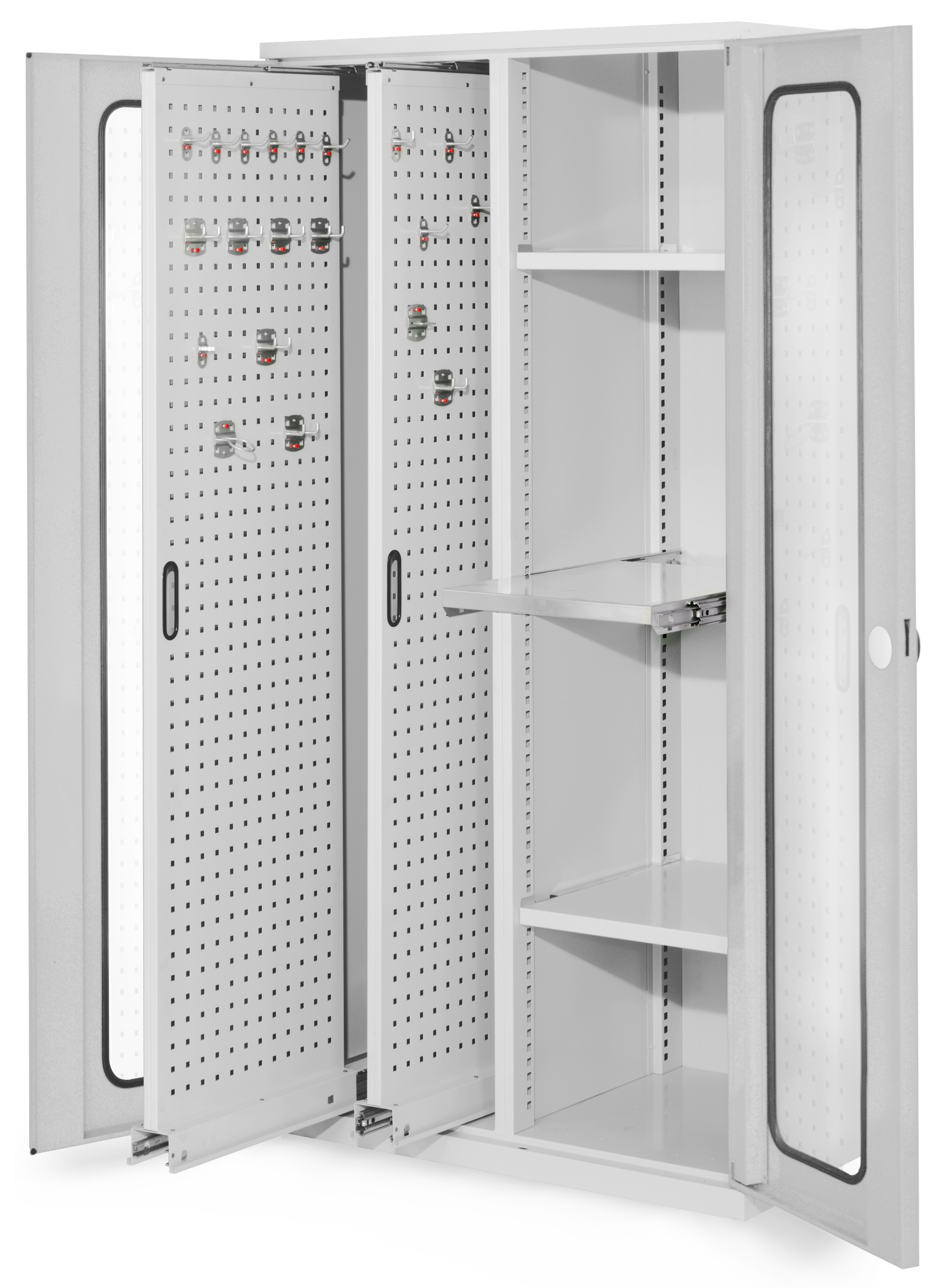

Product description: RasterPlan vertical cabinet model 84
The RasterPlan vertical cabinet model 84, dimensions 1950 x 1000 x 600 mm, offers an efficient solution for storing tools and key profiles. Equipped with a window door, two pull-outs with perforated panels, two shelves and a pull-out shelf, this cabinet ensures organisation and a clear overview in the smallest of spaces.
Technical specifications
- Colour: RAL 7035 (light grey)
- Sturdy sheet steel construction with impact and scratch-resistant plastic coating
- Opening angle of the doors: over 200°
- Double-walled, reinforced doors with continuous linkage guide
- Telescopic drawers with full-extension runners, can be retrofitted, load: 110 kg
- Vertical pull-outs with telescopic runners, full extension, ®RasterPlan system perforations on both sides, load: 100 kg
- Usable surface: 428 x 1720 mm / 12 x 46 holes
- Useful depth: 90 mm per side
- Galvanised shelves, load capacity: 80 kg, adjustable in 25 mm increments
- Three-bolt security cylinder lock, additional keys available on request
Advantages for the user
The RasterPlan vertical cabinet offers a space-saving and clearly organised storage solution that keeps tools and materials within easy reach at all times. The robust design and flexible interior fittings allow customisation to specific requirements. The high load capacity of the drawers and shelves ensures safe storage of heavy items. The recommended wall or floor anchoring provides additional stability and safety.
| Breite: | 1000.00 |
|---|---|
| Farbe/RAL Türen Schubladen: | 7035 |
| Farbe in RAL: | 7035 |
| Höhe: | 1950.00 |
| Länge: | 600.00 |
